Torch Package

CB360-3

Welding Torch c/w Euro fitting 10ft

CB360-4

Welding Torch c/w Euro fitting 12ft

CB360-5

Welding Torch c/w Euro fitting 15ft

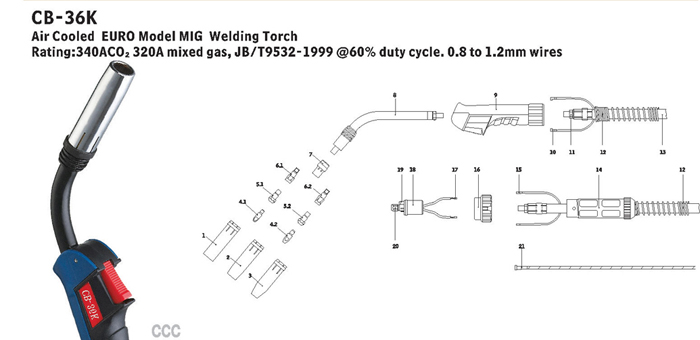

NO.

Code

Model

1

CB36001

Gas Nozzle Cylindrical ND Ф 19.0

2

CB36002

Gas Nozzle Conical ND Ф16.0

3

CB36003

Gas Nozzle Conical ND Ф12.0

4.1

CB24004

Contact Tip M6×28 E-Cu 1.0/1.2/1.6mm

4.2

CB36004.2

Contact Tip M8×30 E-Cu 1.0/1.2/1.6mm

5.1

CB36005.1

Contact Tip Holder M6×28

5.2

CB36005.2

Contact Tip Holder M8×28

6.1

CB36006.1

Contact Tip Holder M6×32

6.2

CB36006.2

Contact Tip Holder M8×32

7

CB36007

Gas Diffuser Ceramic

8

CB36008

Swan neck

9

CB15009

Handle set

10

CB150010

Trigger Wire Connector

11

CB150011

Hexagon nut

12

CB150012

Cable Support spring

13

CB360013

34 2 mm Mig cable 260A

48 2 mm Mig cable 360/380A

14

CB150014

Cable Support Machine Side

15

CB150015

Trigger Wire connector, male

16

CB150016

Adaptor Nut

17

CB150017

Trigger wire connector, female

18

CB150018

Central Connector Euro

19

CB150019

0-ring 4×1

20

CB150020

Nut M10×1

21

CB240021

Euro Liner For Diam 1.0-1.6mm 3m

Euro Liner For Diam 1.0-1.6mm 4m

Euro Liner For Diam 1.0-1.6mm 5m
