| Now Positions: products
→ Welding/Cutting Equipment → Stud Welder → Stud Welder/ Guns/accessories
|
| |
|
| Product detail: |

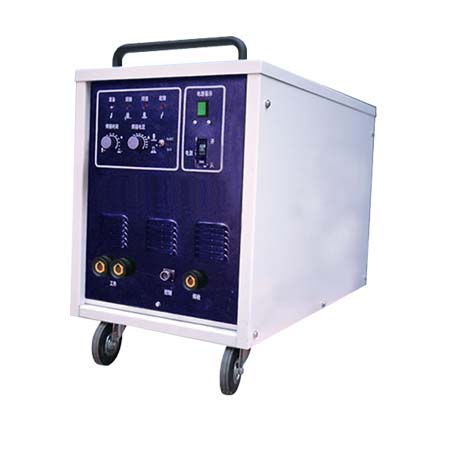

Technical Data ARC 5000
Ceramic Environmental Protection stud welding range 5-22
Short-cycle stud welding range of 5-12
Welding current adjustment range 300-2200
Welding time adjustment range (ms) 20-1500
Maximum welding speed (the number per minute welding / stud diameter) 50/Φ5
3/Φ22
Input Voltage (V)
50/60HZ 3-phase 380
Outlet Specifications
380V (A) 63
Power Cable Specifications
380V (M / mm2) 5 / 16
Power cable maximum length (M) (380V standard cable cross-sectional area) 40
Delay Fuse 380V (A) 63
Under a different duty cycle input power (KVA) 5/60/100
156/45/30
The specified current (A) and cable cross-sectional area under the maximum length of secondary cable 2000/40M
70mm2
Supply voltage fluctuation range (%) -15 / +6
Chassis Protection class IP23
Cooling forced air-cooled |
|
|
|
| |
|
| |
|
|
|
