Features

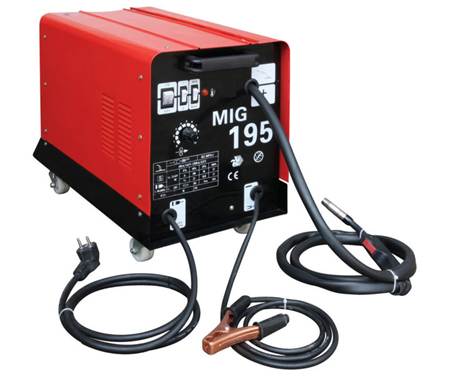

Single phase, flux wire welding machine for flux(No gas) welding.
With thermal protection, complete with flux welding accessory.
Application
The largest users are heavy and medium-heavy industry. It’s also common for hobbyist and home user.
ACCESSORIES:
MIG torch, earth clamp, welding cable, brush/hammer, protective mask
| ITEM |
MIG-105AC |
MIG-135AC |
MIG-150AC |
MIG-175AC |
MIG-195AC |
|
voltage(V) |
230 |
230 |
230 |
230 |
230 |
|
Frequency(hz) |
50 |
50 |
50-60 |
50-60 |
50-60 |
|
Phase |
Single phase |
Single phase |
Single phase |
Single phase |
Single phase |
|
Current range(A) |
35-90 |
40-120 |
40-140 |
40-160 |
40-180 |
|
Rated input capacity(KVA) |
3.0 |
4.7 |
5.2 |
6.3 |
7.5 |
|
No-load voltage(V) |
21-36 |
21-41 |
23-44 |
23-43 |
23-43 |
|
Duty cycle(%) |
90A@10%
50A@35% |
120A@10%
65A@35% |
140A@10%
75A@35% |
160A@10%
120A@35% |
180A@10%
100A@35% |
|
Speed of wire feed(m/min) |
10 |
10 |
10 |
10 |
10 |
|
Usable electrodes(mm) |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-1.0 |
0.6-1.0 |
|
Air flux(L/min) |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
|
Protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
|
Insulation class |
H |
H |
H |
H |
H |
|
N.w/G.w(AL)(KG) |
25 |
26.5 |
34 |
36 |
37 |
|
Carton size(mm) |
500*260*380 |
500*260*380 |
580*360*410 |
580*360*410 |
580*360*410 | |
