Features
Three phase, separate wire feeder, high efficiency
High poser utilization, stable wire feeder, less splash
Output welding current could be possible to adjust the scope thinner and wider
| ITEM |
NBC-250 |

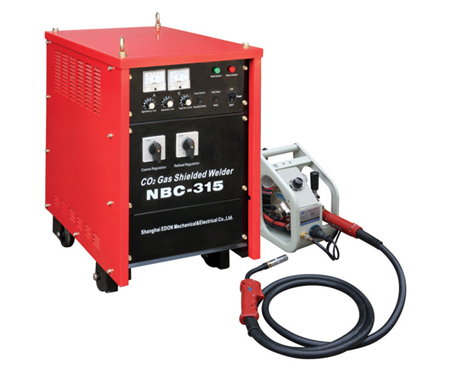

NBC -315 |
NBC -400 |
NBC -500 |
NBC -630 |
|
Rated iput voltage(V) |
380V±10% |
380V±10% |
380V±10% |
380V±10% |
380V±10% |
|
Frequency(hz) |
50 |
50 |
50 |
50 |
50 |
|
Phase |
Three phases |
Three phases |
Three phases |
Three phases |
Three phases |
|
Current range(A) |
60-250 |
60-315 |
60-400 |
80-500 |
80-630 |
|
Rated input capacity(KVA) |
8 |
14 |
18 |
27 |
37 |
|
Rated input current(A) |
12 |
21 |
27 |
41 |
56 |
|
No-load voltage(V) |
33 |
45 |
45 |
55 |
60 |
|
Rated duty cycle(%) |
60 |
60 |
60 |
60 |
60 |
|
Thread-delivering speed(m/min) |
3-15 |
3-15 |
3-15 |
3-15 |
3-15 |
|
Apply thread-jointing(mm) |
0.8-1.0 |
0.8-1.2 |
0.8-1.6 |
1.0-1.6 |
1.0-1.6 |
|
Gas flow(L/min) |
15-20 |
15-20 |
15-20 |
15-20 |
15-20 |
|
Crust protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
|
Insulation class |
F |
F |
F |
F |
F |
|
N.w/G.w(AL)(KG) |
95/105 |
100/110 |
105/120 |
115/130 |
120/125 |
|
Dimension(mm) |
382*760*660 |
382*760*660 |
382*760*660 |
440*760*660 |
500*800*680 | |
