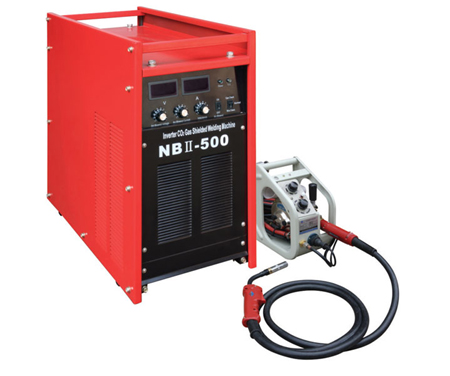

Features Advanced power module and PWM inverter control technology Unique wave control technology obvious improve shape Less splash, easy operation
ITEM |
NBII-250 |
NBII-350 |
NBII-400 |
NBII-500 |
NBII-630 |
Power voltage/frequency |
Three phase380v¡À10%50Hz |
Three phase380v¡À10%50Hz |
Three phase380v¡À10%50Hz |
Three phase380v¡À10%50Hz |
Three phase380v¡À10%50Hz |
Rated input power(KVA) |
8 |
14.4 |
14.4 |
25 |
35.8 |
Rated input current(A) |
12 |
21 |
24 |
37 |
54 |
Rated duty cycle(%) |
60 |
60 |
60 |
60 |
60 |
Output current adjustable range(A) |
60-250 |
60-350 |
60-400 |
60-500 |
60-630 |
Output power adjustable range(A) |
12-30 |
12-40 |
12-40 |
15-50 |
15-50 |
Output no-load voltage(V) |
58 |
58 |
58 |
58 |
58 |
Efficiency(10%) |
89 |
89 |
89 |
89 |
89 |
Power factor |
0.87 |
0.87 |
0.87 |
0.87 |
0.87 |
Apply thread-jointing(mm) |
0.8-1.2 |
0.8-1.2 |
0.8-1.6 |
1.0-1.6 |
1.0-1.6 |
N.w/G.w(KG) |
30/35 |
47/53 |
47/53 |
58/63 |
60/66 |
CO2Gas flow(L/min) |
15-20 |
15-20 |
15-20 |
15-20 |
15-20 |
Main transformer Insulation class |
H |
H |
H |
H |
H |
Output reactor insulation class |
B |
B |
B |
B |
B |
Dimension(mm) |
310*550*560 |
630*320*600 |
630*320*600 |
630*335*630 |
630*350*630 | |
