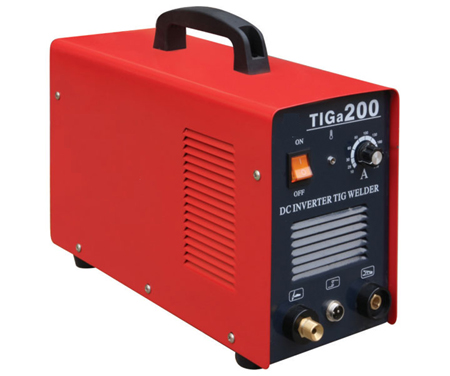

Features Light and portable, fan-cooled, thermostatic protection, HF Arc-starting and strong welding permeability Quick and ease to use even and beautiful welding surface. Application Pipe welding; Thin sheet fabrication; Special materials such as titanium; Instllation; Repair; Maintenance
ACCESSORIES: TIG torch, earth clamp, welding cable, brush/hammer, protective mask.
ITEM |
TIGa-160 |
TIGa-180 |
TIGa-200 |
TIGa-250 |
Voltage/frequency |
AC220V¡À10%50Hz/60Hz |
AC220V¡À10%50Hz/60Hz |
AC220V¡À10%50Hz/60Hz |
AC380V¡À10%50Hz/60Hz |
Rate input capacity(KVA) |
3.3 |
3.9 |
4.6 |
6.3 |
Output current range(A) |
10-160 |
10-180 |
10-200 |
20-250 |
Duty cycle(%) |
60 |
60 |
60 |
60 |
Output voltage(V) |
16.4 |
17.2 |
18 |
20 |
No-load voltage(V) |
42 |
42 |
42 |
54 |
Arc starting |
HF |
HF |
HF |
HF |
Efficiency(%) |
85 |
85 |
85 |
85 |
Power factor(COS§¶) |
0.93 |
0.93 |
0.93 |
0.93 |
Blowing time(S) |
2 |
2 |
2 |
2 |
Net weight(kg) |
8 |
8 |
8 |
22 |
Cross weight(kg) |
12 |
12 |
12 |
26 |
Protection class |
IP21 |
IP21 |
IP21 |
IP21 |
Insulation class |
B |
B |
B |
B |
Dimension(mm) |
371*155*295 |
371*155*295 |
371*155*295 |
480*205*355 | |
