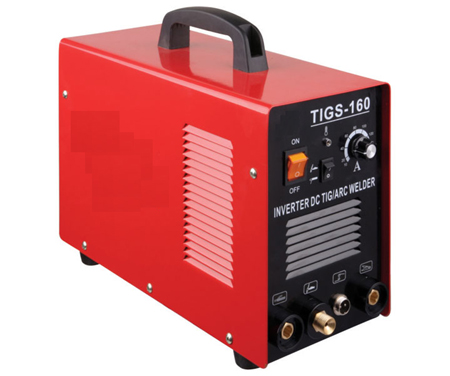

Features Two functions of DC TIG and MMA Low power consumption and excellent power efficiency can save you money Be able to be equipped with water-cooling torch. Application Pipe welding; Thin sheet fabrication; Special materials such as titanium; Installation; Repair; Maintenance
ACCESSORIES: TIG torch, electrode holder, earth clamp, welding cable, brush/hammer, protective mask.
ITEM |
TIGS-160 |
TIGS-180 |
TIGS-250 |
Voltage/frequency |
AC220V¡À10%50Hz/60Hz |
AC220V¡À10%50Hz/60Hz |
AC380V¡À10%50Hz/60Hz |
Rateinputcapacity(KVA) |
TIG 3.3 |
3.9 |
6.3 |
MMA 5.3 |
6.4 |
9.5 |
Output current range(A) |
TIG 10-106 |
10-180 |
20-250 |
MMA 10-160 |
10-180 |
20-250 |
Arc force range(A) |
------ |
------- |
60 |
Duty cycle(%) |
60 |
40 |
60 |
Output voltage(V) |
TIG 16.4 |
17.2 |
20 |
MMA 26.4 |
27.2 |
30 |
No-load voltage(V) |
56 |
56 |
54 |
Arc starting |
HF |
HF |
HF |
Efficiency(%) |
85 |
85 |
85 |
Power factor(COS§¶) |
0.93 |
0.93 |
0.93 |
Blowing time(S) |
2 |
2 |
2 |
Net weight(kg) |
8 |
8 |
22 |
Cross weight(kg) |
12 |
12 |
26 |
Protection class |
IP21 |
IP21 |
IP21 |
Insulation class |
B |
B |
B |
Dimension(mm) |
371*155*295 |
371*155*295 |
480*205*355 | |
