Features
HF Arc-starting, pulse control and strong welding permeability.
Be able to weld carbon steel, stainless steel, copper, steel alloy and titanium metal
Adjustable pulse control, be able to weld automatically.
Application
Pipe welding; Thin sheet fabrication: Special materials such as titanium; Installation; Repair; Maintenance
ACCESSORIES:
TIG torch, earth clamp, welding cable, brush/hammer, protective mask.
| ITEM |

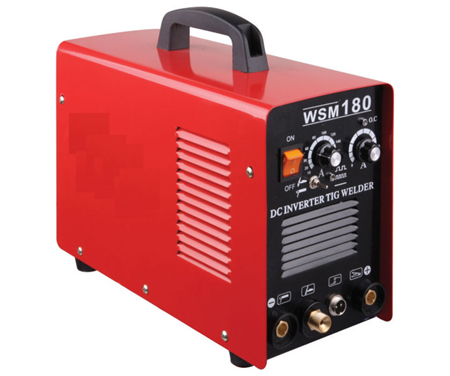

WSM-160 |
WSM-180 |
|
Voltage/frequency |
AC220V±10%50Hz/60Hz |
AC220V±10%50Hz/60Hz |
|
Rate input capacity(KVA) |
3.3 |
3.9 |
|
Output current range(A) |
10-160 |
10-180 |
|
Pulse current(A) |
10-160 |
10-180 |
|
Pulse width adjustment(%) |
10-90 |
10-90 |
|
Duty cycle(%) |
60 |
40 |
|
Output voltage(V) |
16.4 |
17.2 |
|
No-load voltage(V) |
56 |
56 |
|
Arc starting |
HF |
HF |
|
Efficiency(%) |
85 |
85 |
|
Power factor(COSФ) |
0.93 |
0.93 |
|
Blowing time(S) |
2 |
2 |
|
Net weight(kg) |
8.5 |
8.5 |
|
Cross weight(kg) |
12.5 |
12.5 |
|
Protection class |
IP21 |
IP21 |
|
Insulation class |
B |
B |
|
Dimension(mm) |
387*160*268 |
387*160*268 | |
