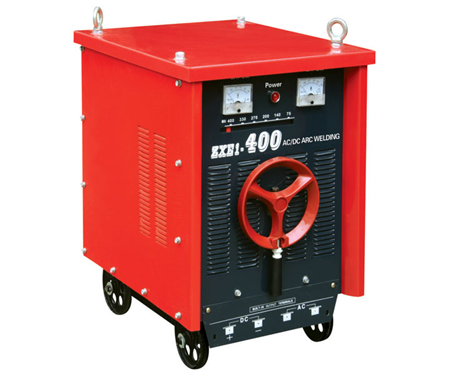

Features
Use moving coil type structure, the main circuit uses the bridge type rectification and reactance filter form
The output has AC and DC two kind of voltages, not only may use Φ2-Φ8 acidic welding rod, to weld low-carbon steel, low-alloy steel and so on material. but also may use the welding rod to weld carton steel, alloy steel, as well as cast iron welding and so on metal, moreover the welding electric arc is stable.
| ITEM |
ZXE1-250 |
ZXE1-315 |
ZXE1-400 |
ZXE1-500 |
|
Iput voltage(V) |
380 |
380 |
380 |
380 |
|
Frequency(hz) |
50 |
50 |
50 |
50 |
|
Phase |
Single phase |
Single phase |
Single phase |
Single phase |
|
Current range(A) |
AC:50-250
DC:40-200 |
AC:65-315
DC:50-250 |
AC:80-400
DC:65-315 |
AC:100-500
DC:80-400 |
|
Rated input capacity(KVA) |
15.8 |
23.2 |
30.3 |
39.5 |
|
No-load voltage(V) |
60 |
70 |
72 |
75 |
|
Duty cycle(%) |
35 |
35 |
35 |
35 |
|
Usable electrodes(mm) |
Ф2-Ф4 |
Ф2.5-Ф5 |
Ф2.5-Ф5.8 |
Ф3.2-Ф6 |
|
Protection class |
IP21S |
IP21S |
IP21S |
IP21S |
|
Insulation class |
F |
F |
F |
F |
|
N.w/G.w(Copper)(KG) |
82/90 |
96/106 |
110/119 |
127/138 |
|
N.w/G.w(AL)(KG) |
80/88 |
93/102 |
105/114 |
120/130 |
|
Carton size(mm) |
520*420*690 |
585*445*695 |
585*445*695 |
645*485*770 | |
