Features Moving coil type transformer, suitable 380V/220V AC supply. Compact, light, east to carry. Suit for mobile, go out and small-scale construct and busywork. Provided with automatic temperature protector and air-cooling unit, high efficiency and safety Application Hobby and small repair shops or installation worksites In outdoor environments.
ACCESSORIES: electrode holder, earth clamp, welding cable, brush/hammer, protective mask.
ITEM |
BX1-80-B |
BX1-100-B |
BX1-130-B |

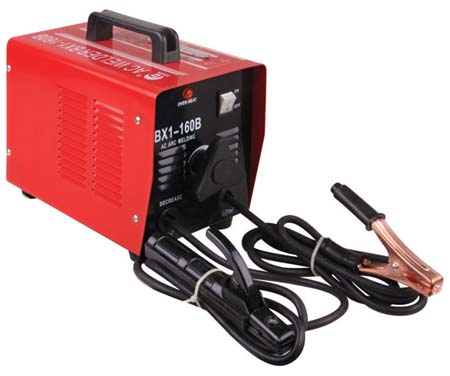

BX1-160-B |
BX1-180-B |
BX1-200-B |
Iput voltage(V) |
230 |
230 |
230 |
230 |
230-400 |
230-400 |
Frequency(hz) |
50 |
50 |
50 |
50 |
50-60 |
50-60 |
Phase |
Single phase |
Single phase |
Single phase |
Single phase |
Double phase |
Double phase |
Current range(A) |
35-80 |
40-100 |
55-130 |
55-160 |
60-180 |
60-200 |
Rated input capacity(KVA) |
3.3 |
3.5 |
5 |
6.5 |
7 |
7.5 |
No-load voltage(V) |
48 |
48 |
48 |
48 |
48 |
48 |
Duty cycle(%) |
10 |
10 |
10 |
10 |
180A@10% 75A@60% |
200A@10% 82A@60% |
Usable electrodes(mm) |
1.6-2.5 |
1.6-2.5 |
2.0-3.2 |
2.0-4.0 |
2.5-4.0 |
2.5-4.0 |
Protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
Insulation class |
H |
H |
H |
H |
H |
H |
N.w/G.w(AL)(KG) |
12/15 |
12.5/15.5 |
14.5/17.5 |
16.5/19.5 |
19/21 |
21/24 |
Carton size(mm) |
370*220*290 |
370*220*290 |
430*220*300 |
430*220*300 |
430*220*305 |
430*220*305 | |
