Features

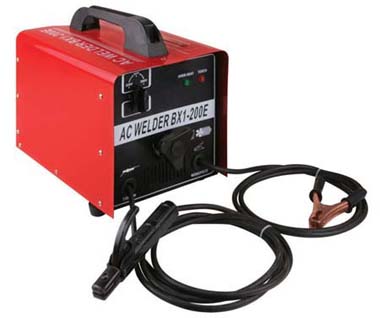

Moving coil type transformer, suitable 380V/220V AC supply.
Compact, light, east to carry. Suit for mobile, go out and small-scale construct and busywork.
Provided with automatic temperature protector and air-cooling unit, high efficiency and safety
Application
Hobby and small repair shops or installation worksites In outdoor environments.
ACCESSORIES:
electrode holder, earth clamp, welding cable, brush/hammer, protective mask.
| ITEM |
BX1-130-E |
BX1-160-E |
BX1-180-E |
BX1-200-E |
BX1-250-E |
|
Iput voltage(V) |
230 |
230 |
230-400 |
230-400 |
230-400 |
|
Frequency(hz) |
50 |
50 |
50-60 |
50-60 |
50-60 |
|
Phase |
Single phase |
Single phase |
Double phase |
Double phase |
Double phase |
|
Current range(A) |
55-130 |
55-160 |
60-180 |
60-200 |
65-250 |
|
Rated input capacity(KVA) |
5 |
6.2 |
7 |
7.5 |
10 |
|
No-load voltage(V) |
48 |
48 |
48 |
48 |
48 |
|
Duty cycle(%) |
10 |
10 |
180A@10%
75A@60% |
200A@10%
82A@60% |
250A@10%
100A@60% |
|
Usable electrodes(mm) |
2.0-3.2 |
2.0-4.0 |
2.5-4.0 |
2.5-4.0 |
2.5-5.0 |
|
Protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
|
Insulation class |
H |
H |
H |
H |
H |
|
N.w/G.w(AL)(KG) |
15.7/18.7 |
18/21 |
20/23 |
21/24 |
24/27 |
|
Carton size(mm) |
380*260*330 |
380*260*330 |
400*260*290 |
400*260*290 |
410*260*290 | |
