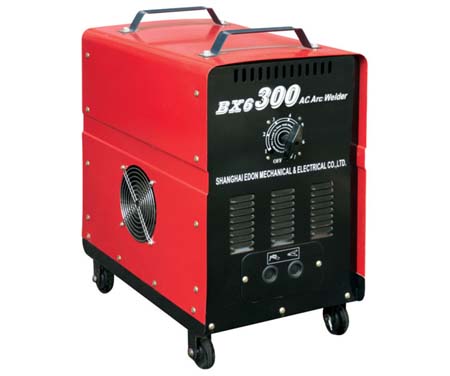

Features
The welding current uses the multi-positiions switch, step adjustment, stable electric arc, no phenomenon that blows the magnetism to the leaning
The entire series machines use the small car type structure, convenient to move.
Suitable to Φ2-Φ5.8 acidic welding rod, to weld low-carbon steel, low-alloy steel and so on material
| ITEM |
BX6-200 |
BX6-250 |
BX6-300 |
BX6-400 |
BX6-500 |
|
Input voltaage(V) |
380/220 |
380/220 |
380/220 |
380 |
380 |
|
Phase |
Single phase |
Single phase |
Single phase |
Single phase |
Single phase |
|
Frequency(HZ) |
50 |
50 |
50 |
50 |
50 |
|
Rate input capacity(KVA) |
11.6 |
14.5 |
17.7 |
25.3 |
34.2 |
|
Current range(A) |
50-200 |
50-250 |
60-300 |
80-400 |
100-500 |
|
No-load voltage(V) |
55 |
55 |
56 |
60 |
65 |
|
Non-duty cycle(%) |
20 |
35 |
35 |
35 |
35 |
|
Usable electrode(mm) |
Ф2-Ф3.2 |
Ф2-Ф3.2 |
Ф2.5-Ф4 |
Ф2.5-Ф5 |
Ф3.2-Ф5.8 |
|
Crust protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
|
Insulation class |
F |
F |
F |
F |
F |
|
N.w/G.w(Copper)(Kg) |
35.5/40 |
37/42 |
42/46 |
46.8/52 |
53//58.5 |
|
N.w/G.w(AL)(Kg) |
34.5/39 |
36.5/40.5 |
40/44 |
45/50 |
51.8/57.5 |
|
Dimension(mm) |
510*325*550 |
510*325*550 |
510*335*610 |
560*370*640 |
560*370*640 | |
