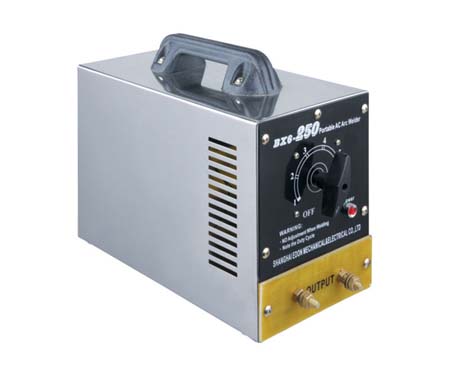

Features Adopt to tsp transformer, forced air cooling structure; Suitable for welding medium and small work pieces; 3,220V/380V input voltage, with switch to adjust output current Easy to operate and adjust.
ITEM |
BX6-160-S/S |
BX6-180-S/S |
BX6-200-S/S |
BX6-250-S/S |
BX6-300-S/S |
Input voltaage(V) |
380/220 |
380/220 |
380/220 |
380/220 |
380/220 |
Phase |
Single phase |
Single phase |
Single phase |
Single phase |
Single phase |
Frequency(HZ) |
50 |
50 |
50 |
50 |
50 |
Rate input capacity(KVA) |
8.4 |
9.9 |
11.6 |
14.7 |
17.7 |
Current range(A) |
50-160 |
50-180 |
55-200 |
60-250 |
70-300 |
No-load voltage(V) |
50 |
52 |
55 |
56 |
56 |
Non-duty cycle(%) |
20 |
20 |
20 |
20 |
20 |
Usable electrode(mm) |
Ф2-Ф2.5 |
Ф2-Ф2.5 |
Ф2.5-Ф3.2 |
Ф2.5-Ф3.2 |
Ф3.2-Ф4 |
Crust protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
Insulation class |
F |
F |
F |
F |
F |
N.w/G.w(Copper)(Kg) |
16.8/17.5 |
18/18.8 |
20/21 |
22/23 |
28/29.3 |
N.w/G.w(AL)(Kg) |
16/16.7 |
17.2/18 |
19/20 |
21/22 |
26.8/28 |
Dimension(mm) |
385*145*290 |
385*145*290 |
410*175*295 |
410*175*295 |
450*210*350 | |
