Features
Single phase moving core type and forced air cooling structure.
Stable arc, less spatter and deep penetration can ensure welding quality well.
Simple structure, high efficiency, easy to operate and maintanence.
Application
Suitable for welding ferrous metal workpiece with general AC electrode.
| ITEM |
BX1-200-1 |
BX1-250-1 |
BX1-315-1 |

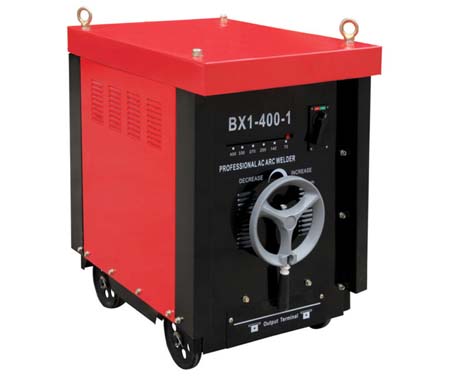

BX1-400-1 |
BX1-500-1 |
BX1-630-1 |
|
Iput voltage(V) |
380 |
380 |
380 |
380 |
380 |
380 |
|
Frequency(hz) |
50 |
50 |
50 |
50 |
50 |
50 |
|
Phase |
Single phase |
Single phase |
Single phase |
Single phase |
Single phase |
Single phase |
|
Current range(A) |
50-200 |
50-250 |
65-315 |
80-400 |
100-500 |
125-630 |
|
Rated input capacity(KVA) |
12.2 |
15.8 |
23.2 |
30.3 |
39.5 |
50.4 |
|
No-load voltage(V) |
58 |
60 |
70 |
72 |
75 |
76 |
|
Duty cycle(%) |
35 |
35 |
35 |
35 |
35 |
35 |
|
Usable electrodes(mm) |
Ф2-Ф3.2 |
Ф2-Ф4 |
Ф2.5-Ф5 |
Ф2.5-Ф5.8 |
Ф3.2-Ф6 |
Ф3.2-Ф8 |
|
Protection class |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
|
Insulation class |
F |
F |
F |
F |
F |
F |
|
N.w/G.w(Copper)(KG) |
61/70 |
67/72 |
75/85 |
87/97 |
101/115 |
121/135 |
|
N.w/G.w(AL)(KG) |
60/68 |
65/74 |
70/80 |
81/91 |
92/105 |
110/123 |
|
Carton size(mm) |
600*390*595 |
600*390*595 |
635*460*725 |
635*460*725 |
685*480*730 |
685*480*730 | |
