Features
Moving coil type transformer, suitable for 220V/380V AC supply
Compact, light, easy to carry
Provided with automatic temperature protector and air-cooling unit, and high efficiency and safety
Application
Suitable for welding ferrous metal workpiece with general AC electrode.
| 型号 |
BX1-200-3 |

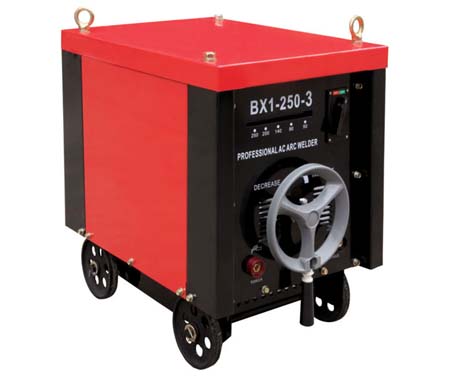

BX1-250-3 |
BX1-315-3 |
BX1-400-3 |
BX1-500-3 |
BX1-630-3 |
|
输入电压V) |
380/220 |
380/220 |
380/220 |
380 |
380 |
380 |
|
相数 |
单相 |
单相 |
单相 |
单相 |
单相 |
单相 |
|
频率(hz) |
50 |
50 |
50 |
50 |
50 |
50 |
|
额定输入容量(KVA) |
12.2 |
15.8 |
23.2 |
30.3 |
39.5 |
50.4 |
|
电流范围(A) |
50-200 |
50-250 |
65-315 |
80-400 |
100-500 |
125-630 |
|
无载电压(V) |
58 |
60 |
70 |
72 |
75 |
76 |
|
负载持续率(%) |
35 |
35 |
35 |
35 |
35 |
35 |
|
适用焊条(mm) |
Ф2-Ф3.2 |
Ф2-Ф4 |
Ф2.5-Ф5 |
Ф2.5-Ф5.8 |
Ф3.2-Ф6 |
Ф3.2-Ф8 |
|
防护等级 |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
|
绝缘等级 |
F |
F |
F |
F |
F |
F |
|
净重/毛重(铜)(KG) |
65/72 |
75/83 |
81/92 |
95/104 |
106/118 |
125/139 |
|
净重/毛重(铝)(KG) |
62/70 |
68/76 |
72/80 |
81/90 |
95/107 |
112/125 |
|
外形尺寸(mm) |
600*390*595 |
600*390*595 |
635*460*725 |
635*460*725 |
685*480*730 |
685*480*730 | |
