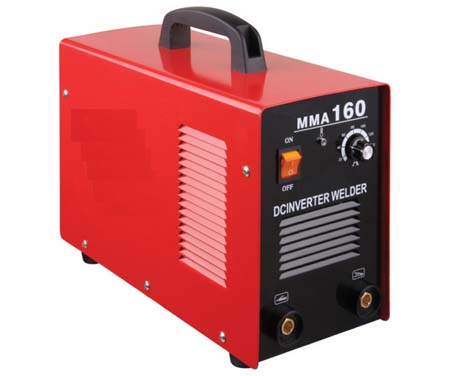

Features Single-phase, portable, fan-cooled, thermostatic protection, movable welding cable Advanced inverter technology, superior arc performance "Weld anywhere" with light weight, comfort to carry Application hobby and small repair shops or installation worksites in outdoor environments.
ACCESSORIES: electrode holder, earth clamp, welding cable, brush, protective mask
ITEM |
MMA-140 |
MMA-160 |
MMA-180 |
MMA-200 |
MMA-250 |
Voltage/frequency |
AC220V¡À10%50Hz/60Hz |
AC220V¡À 10%50Hz/60Hz |
AC220V¡À 10%50Hz/60Hz |
AC220V¡À 10%50Hz/60Hz |
AC380V¡À 10%50Hz/60Hz |
Rate input capacity(KVA) |
4.5 |
5.3 |
6.2 |
7.1 |
9.5 |
Output current range(A) |
15-140 |
20-160 |
20-180 |
20-200 |
20-250 |
Arc force range(A) |
------ |
------- |
-------- |
-------- |
0-75 |
Duty cycle(%) |
60 |
60 |
40 |
40 |
60 |
Output voltage(V) |
25.6 |
26.4 |
27.2 |
28 |
30 |
No-load voltage(V) |
56 |
56 |
56 |
56 |
56 |
Efficiency(%) |
85 |
85 |
85 |
85 |
85 |
Power factor(COS§¶) |
0.93 |
0.93 |
0.93 |
0.93 |
0.93 |
Usable electrodes(mm) |
1.0-3.2 |
1.0-3.2 |
1.6-3.2 |
1.6-3.6 |
1.6-4.0 |
Net weight(kg) |
8 |
8 |
8 |
8 |
22 |
Cross weight(kg) |
11 |
11 |
11 |
11 |
26 | |
