项 目 Project |

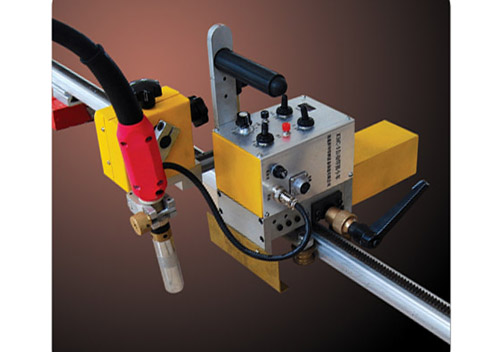

ECH-5 |
车
体
部
分 |
外形尺寸 Size |
490(L)×340(W)×210(H) |
重量 Weight |
8Kg |
使用电源 Input Voltage |
AC24V(配专用适配器) With special adapter |
功率 Power |
<30W |
驱动电机 Drive motor |
DC24V 25W 12RPM |
减速器 Gear Reduction |
250:1 |
行走速度 Travel speed |
10-120cm/min无级调速 Stepless speed regulation |
驱动方式 Drive Mode |
齿轮齿条驱动 Transmission of the four-wheeled gear wheel |
仿行形式 Imitation in the form of line |
沿齿条移动 Imitate the conduct wheel to move along setting up the board |
行走方向 Direction |
左方向或右方向 Left/Right |
焊接盲区 Blind spot welding |
0 |
焊接方式 Welding methods |
单面角焊 Single-sided angle welding |
焊枪数量 The number of torch |
1 |
|
导轨部分 |
固定方式 |
永磁 Permanent magnet |
单根长度 |
1.5m |
|
调
节
部
分 |
上/下 Up / down |
30mm |
前/后 Forward / back |
40mm |
焊接角度 Welding angle |
45°± 30° |
焊枪夹具 Torch clamp |
手柄拧紧式 Hinge handle clamping type |
|
控
制
部
分 |
主要功能 Main function |
电源开关 Power
焊接开始/停止按钮 Start / Stop
方向开关 Direction switch
速度调节 Travel speed
手动行走 Manualtype |
|
标准配置 Standard configuration |
电源电缆 Power cable |
10m( 配专用电源适配器 With special adapter) |
导轨 Rail |
1.5m |
选用配置 Optional configuration |
焊枪 Welding torch |
500A 空冷直管焊枪 Air-cooled auto welding torch,长度 Length:4-8m |
