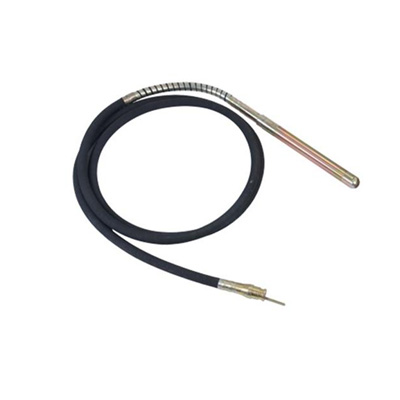

It is suitable for common concrete compaction, widely used in many places such as the bridge, the harbour constrution, the large scale dam etc, it can be driven by gasoline, diesel, electric motor.
Couple option:
1. Japanese type
2. Dynapac/ Malaysia type
3. Russian type
4. Korean type
5. Australia type
6. Turkey type
Head dia:
25mm, 28mm, 32mm, 35mm, 38mm, 45mm, 50mm, 60mm, 70mm
|
Model |
XZ25 |
XZ28 |
XZ32 |
XZ35 |
XZ38 |
XZ45 |
XZ50 |
XZ60 |
XZ70 |
|
Head dia |
25mm |
28mm |
32mm |
35mm |
38mm |
45mm |
50mm |
60mm |
70mm |
|
Length of shaft |
standard length:4m, 6m (1~12m is available.) |
|
Dia of outside hose |
24mm |
25mm |
30mm |
32mm |
36mm |
|
Dia of flexible shaft |
8mm |
10mm |
12mm |
13mm |
|
Amplitude |
1.1mm |
1.11mm |
1.13mm |
1.15mm |
1.18mm |
1.2mm |
1.21mm |
1.28mm |
1.32mm |
|
Frequency |
230hz |
210hz |
200hz |
|
Max vibration force |
4.5kn |
4.8kn |
5.1kn |
5.3kn |
5.5kn |
5.9kn |
6.2kn |
6.7kn |
7.1kn |
|
Couple option |
Japanese/ Dynapac, Malaysia/ Koean/ Australia/ Turkey |
|
Engine type |
Gsaoline engine, diesel engine, electric type |
|
Optional |
Outer liner, spring |
|
Packing size |
75x75x5,5cm | |
