| Now Positions: products

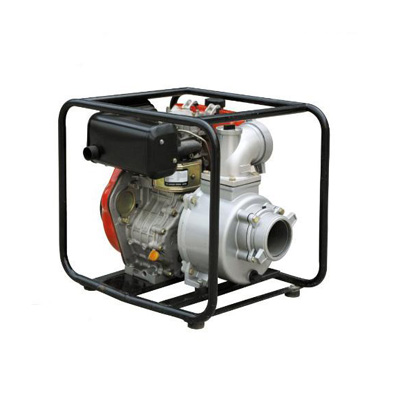

→ Construction Machine → water pump
|
| |
|
| Product detail: |
|
Model |
D50 |
D80 |
D100 |
|
Outlet size (mm) |
50 |
80 |
100 |
|
Inlet size (mm) |
50 |
80 |
100 |
|
Max displacement (m³ / h) |
30 |
60 |
85 |
|
Max lift height (m) |
25 |
28 |
25 |
|
Max suction height (m) |
7 |
7 |
7 |
|
Engine model |
D170 |
D178 |
D186 |
|
Engine type |
|
|
|
|
Displacement (cc) |
211 |
296 |
406 |
|
Bore stroke (mm) |
70x55 |
78x62 |
86x70 |
|
Rotary speed (rpm) |
3600 |
3600 |
3600 |
|
Continuous output (hp) |
3.8 |
6.1 |
9.0 |
|
Max output (hp) |
4.2 |
6.6 |
9.9 |
|
Fuel consumption (g / kw.h) |
≤288 |
≤285 |
≤285 |
|
Startig system |
Recoil or electric |
Recoil or electric |
Recoil or electric |
|
Cooling system |
Forced air |
Forced air |
Forced air |
|
Fuel |
Diesel |
Diesel |
Diesel |
|
Fuel tank capacity (L) |
2.5 |
3.5 |
5.5 |
|
Oil capactiry (L) |
0.75 |
1.1 |
1.65 |
|
Continuous working time (h) |
2.5 |
2.5 |
2.5 |
|
N W / G W (kg) |
44 /45 |
56 /57 |
64.5 / 65.5 |
|
Packing size (mm) |
515x435x495 |
560x475x555 |
645x500x590 | |
|
|
|
| |
|
| |
|
|
|
